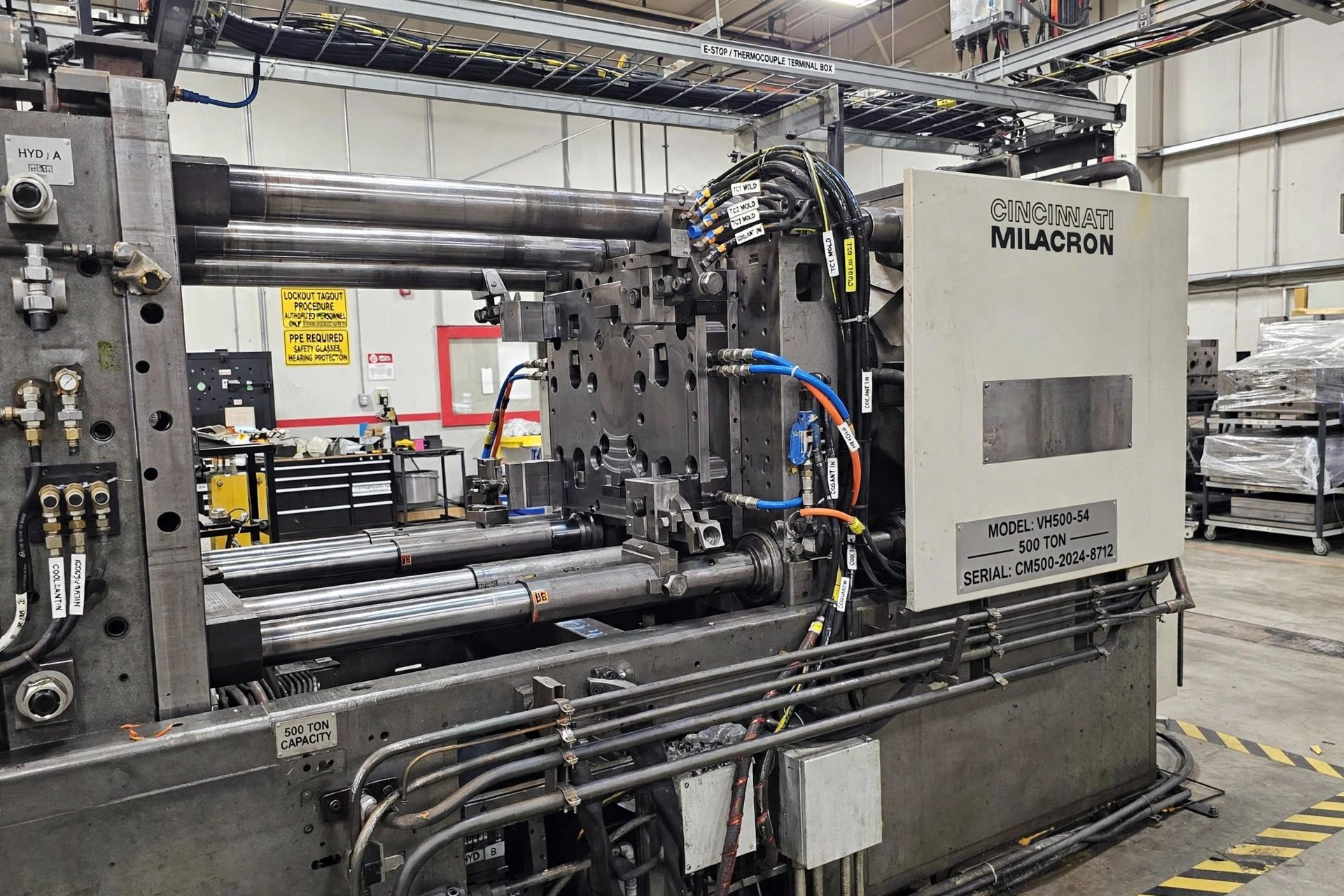

Machine Platen Alignment and Tie-Bar Clearances
An export mold has to drop into a North American press the day it arrives. That only happens when the press interface is designed into the mold from the first layout. Molds built to the metric standards common on Asian presses arrive with the wrong locating ring, a knockout pattern that misses the ejector rods, or a mold base that will not clear the tie bars.
Critical Press Interface Variables
TK designs each export mold around the spec sheet of the press it will run in:
- Locating Ring and Sprue: North American presses commonly use a 4.000 in locating ring bore, so the mold ring is made 3.990 in to slip in. Larger presses may use a bigger bore. The sprue bushing radius and orifice are matched to your nozzle.
- Tie Bar Clearance: The mold must pass between the tie bars when loaded from the top (width) or the side (height), with slides, cylinders and water fittings included in the envelope.
- Mold Height and Opening Stroke: Shut height must fall inside the press’s minimum and maximum mold height, and the clamp must open far enough to eject the part and clear a robot.
- Knockout Pattern: Ejector plate tapped to match your press knockout pattern and ejector rod thread.
- Clamp Slots and Lifting: Clamp slots or clamp plates sized for your clamps, and lifting holes sized for the full mold weight.

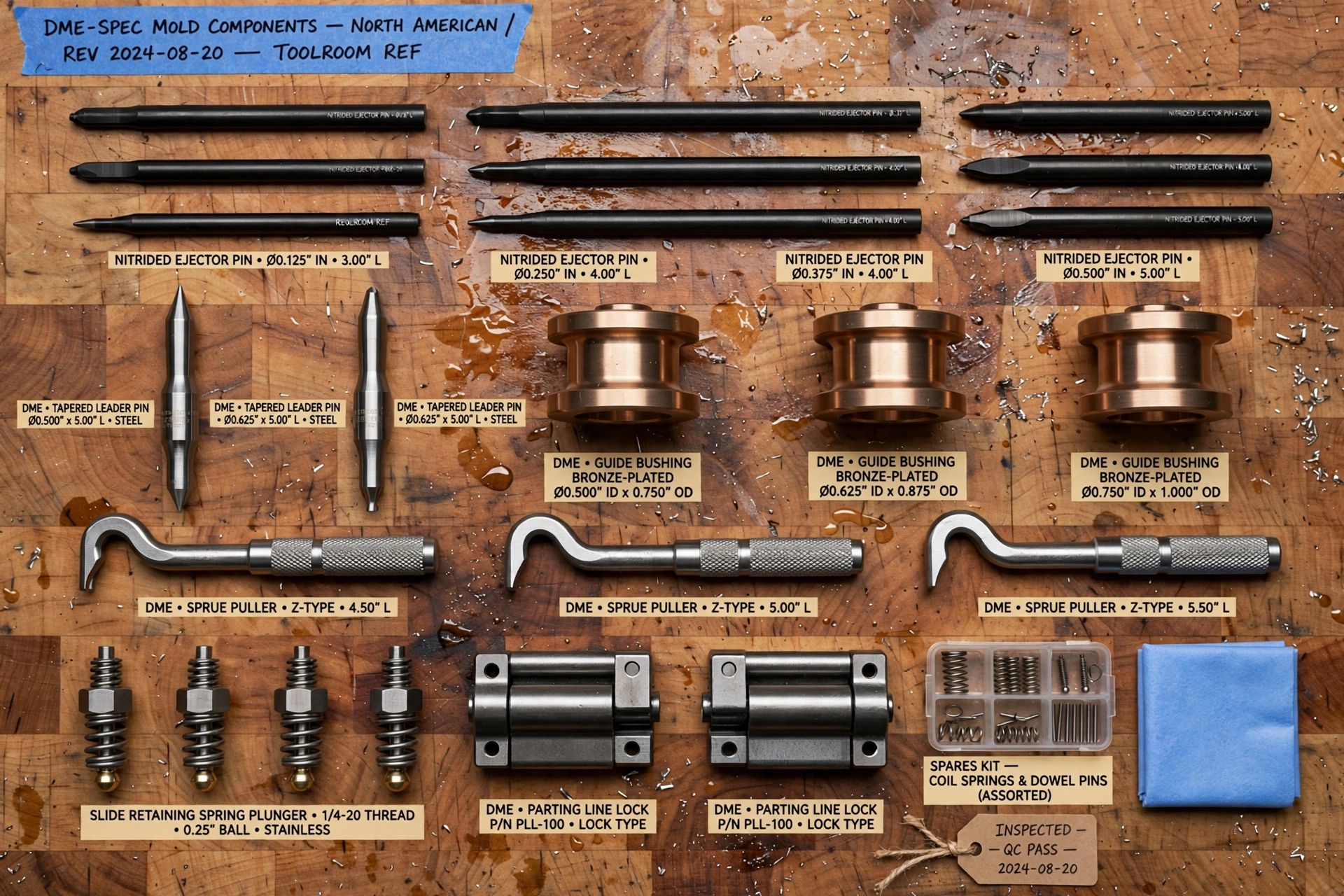

DME and HASCO Component Standards vs Asian Hardware
The biggest worry with an overseas mold is replacement parts. If a pin breaks or a bushing wears and the replacement is a nonstandard metric part made overseas, the press sits. TK builds export molds with standard components your maintenance team can buy locally, called out by part number in the mold drawings.
| Tooling Item | Common Asian Shop Default | TK Export Build for U.S. Plants | Why It Matters |
|---|---|---|---|
| Ejector Pins and Sleeves | Metric pins from local or Misumi catalogs | Inch or metric pins from DME, Progressive, HASCO or Meusburger, to your standard | Replacements come from a U.S. distributor, not overseas |
| Leader Pins and Bushings | Local metric pins and bushings | Hardened leader pins with self lubricating or bronze bushings from standard catalogs | Standard sizes, easy to replace when worn |
| Water Threads and Couplers | BSPT or BSPP threads | NPT threads with your couplers (for example Jiffy Tite, Parker or Staubli) | Hooks straight up to your water manifolds without adapters |
| Parting Line Locks | Simple tapered interlocks | Standard side locks or top locks, such as Progressive | Repeatable alignment, catalog replacement parts |
| Hot Runner Connectors | Shop specific wiring | Wired to your plant standard, for example the DME style 24 pin and 16 pin Harting type connectors | Plugs into your temperature controller with no rewiring |
| Locating Ring and Sprue | 100 or 125 mm ring, metric sprue radius | 3.990 in ring for a 4.000 in bore (or your press size), sprue radius matched to your nozzle | Hangs in the press on the first try |
Spare Parts Your Team Can Order
Each export mold ships with 2D and 3D mold drawings and a recommended spare parts list, so your maintenance team can order standard replacements from your usual distributor. TK also offers tool repair and spare parts service.
For multi cavity tools, see our high cavitation and stack molds or our custom injection mold tooling.

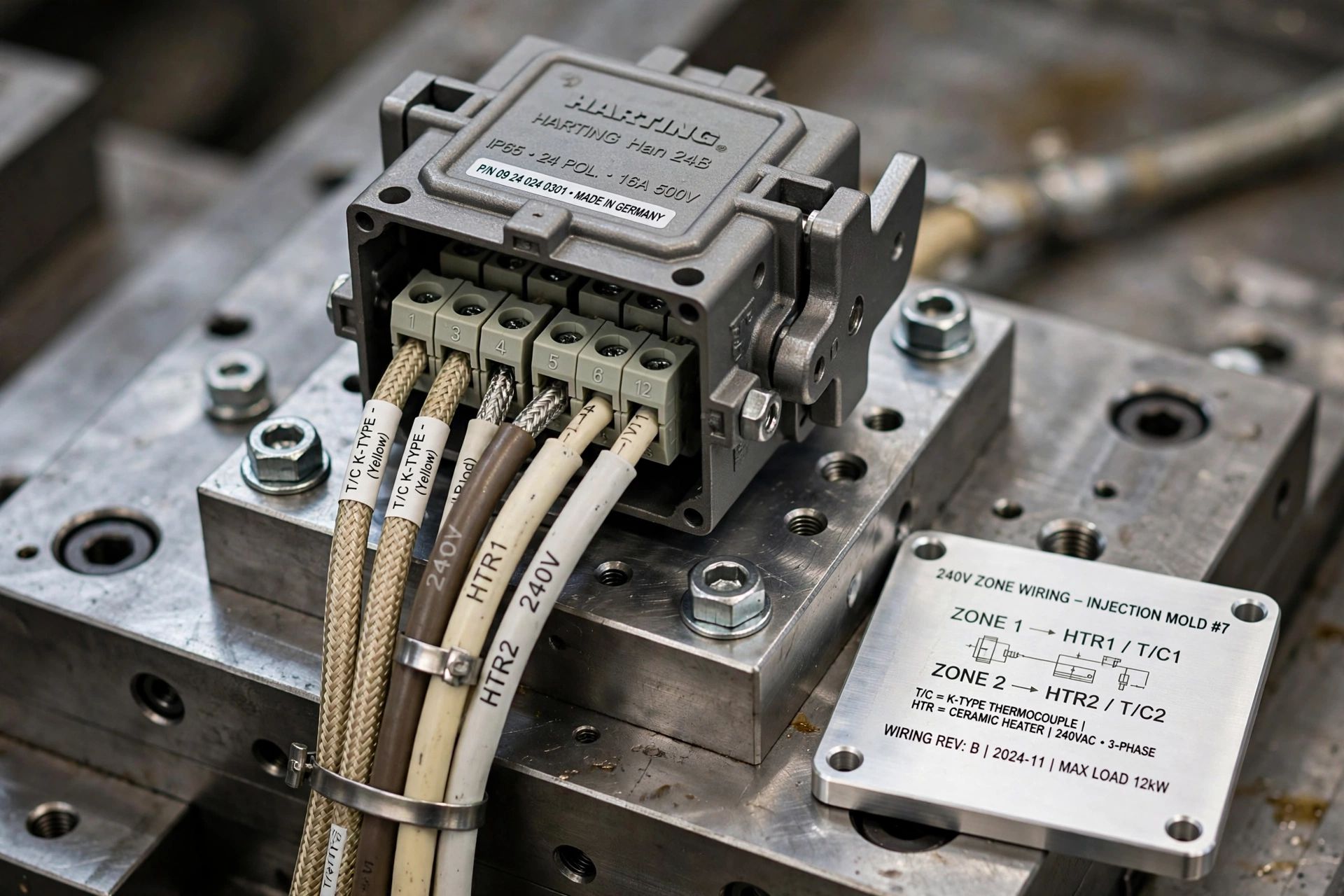

Hot Runner Manifold Wiring and Controller Compatibility
Hot runner wiring is where many imported molds fail at start up. North American plants run hot runner temperature controllers from suppliers such as Gammaflux, DME and Mold-Masters, each plant with its own connector and pin out standard. A mold wired to a different pin out can read the wrong zone or damage heaters the first time it is plugged in.
Wired to Your Plant Standard
- Thermocouples: Type J is the common North American choice. Type K is used where your controllers call for it.
- Connectors and Pin Out: Power and thermocouple connectors and pin assignments wired to your plant standard, mounted in junction boxes on top or on the non operator side.
- Zone Identification: Every zone labeled to match the wiring schematic shipped with the mold.
- Hot Runner Systems: Systems from suppliers with North American service networks, such as Husky, Mold-Masters, Synventive, HRS, INCOE or YUDO, as you specify.
Waterlines, Chiller Circuits, and NPT Fittings
Mismatched pipe threads cause leaks and wasted setup time. Many Asian shops use British Standard Pipe threads, tapered (BSPT) or parallel (BSPP). North American plants use National Pipe Taper (NPT), which has a different thread angle and pitch, so the two do not seal together.
TK taps export molds with NPT threads in the sizes your plant uses, commonly 1/4 in, 3/8 in and 1/2 in, fits your quick connect couplers, and labels every circuit in and out to match the water diagram shipped with the mold. For hard to cool cores, see our conformal cooling.
Interactive Press Compatibility Specifier
Enter your press specs from its spec sheet and your mold’s size. The checker tests tie bar clearance for top and side loading, shut height against the press mold height range, opening stroke, and clamp tonnage, then draws the mold on your platen to scale. Open “Show the math” to see every check worked out.
Show the math
Geometry checks are exact for the numbers you enter. Tonnage uses common rule of thumb clamp factors by resin, and the 0.5 in (13 mm) per side tie bar margin is a rule of thumb; TK confirms both in DFM against your press spec sheet. Default numbers are an example only.
The Export Delivery Data Package
A mold that leaves the country needs to arrive with everything your toolroom and quality team need to run it, maintain it and audit it. Every TK export mold ships with a full data package.
- Steel and heat treat certificates: material and heat treatment reports for the cavity, core and insert steel.
- 3D mold design and 2D drawings: the full mold design with the bill of materials, so your toolroom can order and replace parts.
- CMM sample reports: dimensional reports on molded sample parts. TK inspects 100% of critical dimensions by CMM, with a pass rate of 99.8% or better.
- Trial record: the press settings used to run the mold in the TK testing center, as a starting point for your process.
- Water and wiring diagrams: every cooling circuit and hot runner zone labeled to match the tags on the mold.
- Recommended spare parts list: the wear items to keep on your shelf. TK also offers tool repair and spare parts service.
- 1Press checkDFM against your press spec sheet and plant standards
- 2BuildYour components, fittings and wiring, built in 3 to 6 months typical
- 3TrialRun in the TK testing center on presses from 100 to 1,500 T
- 4InspectCMM reports on sample parts, 99.8% or better pass rate
- 5ShipVacuum packed, crated, with the full data package
- 6Start upTK project managers travel to support start up in your plant
Trials run in TK’s mold testing center on presses many U.S. plants already use, including Husky, Milacron, Engel, Krauss Maffei, Arburg and JSW, from 100 to 1,500 tons. TK project managers average 15 years with the company and travel to support start up. To see the lab and inspection equipment, visit our mold trials and quality verification page.
Technical Sourcing FAQ: Export Tooling
Have a Tooling Package Heading to a U.S. Plant?
Send us your press spec sheets and 3D part models. Brandon Henderson will check the mold against your presses and review the design before the build starts, so the tool drops into your machine and runs.
